Teco Tecoponics HY-500 Hydroponic Chiller

$1,609.98 USD

Sale Sold out

Add TECOnnect WiFi Device Yes (+139.99) No

For standard systems & aquariums up to 120 gallons

The new Hydroponics chiller line is the next generation of TECO chillers, used by consumers and professionals for over two decades. New changes include an increase in cooling efficiency and improved usability, functionality, and durability.

EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.

DIGITAL THERMOSTAT

Intuitive controller with accurate temperature detection from 60.8°F to 71.6°F. Closed loop temperature control system with an extremely tight differential of 1°C. Displays in °F or °C, and audible alarms for certain situations.

EFFICIENT DESIGN

A solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor helps facilitate placement of chiller in confined spaces.

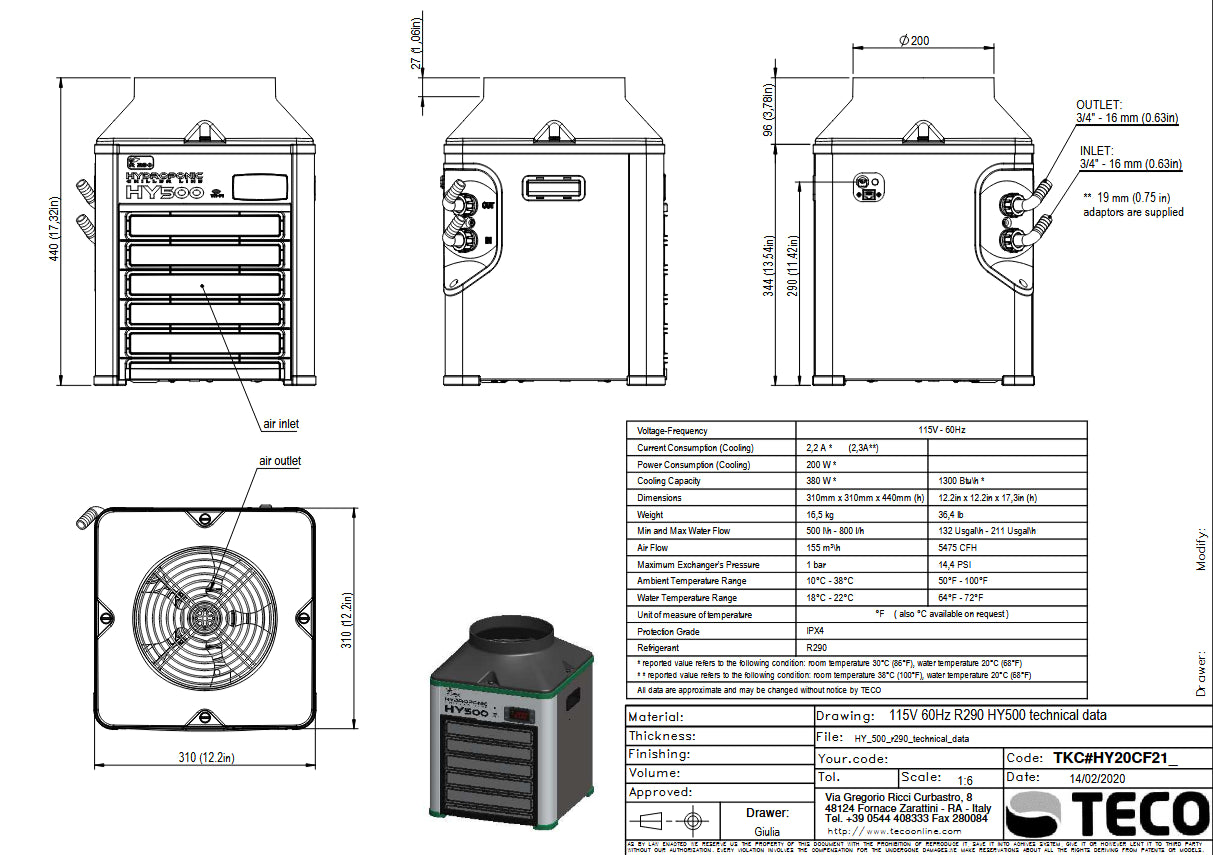

TECHNICAL SPECIFICATIONS

Aquarium Size	Up to 120 gallons
Horsepower	1/6 HP
Wifi Capable	YES
Maximum Pressure	8.7 psi
Minimum Flow Rate	106 gallons per hour
Maximum Flow Rate	211 gallons per hour
Water Inlet/Outlet Thread	3/4" SAE thread (19mm)
Inlet/Outlet Barb Fitting	D 5/8" (0.63" or 16mm)
Exchanger	Titanium
Supply	120V-60Hz
Power Consumption	225 Watts
Gas/Refrigerant	R290
Minimum Set Point	60.8 F
Maximum Set Point	71.6 F
Weight	36.4 lbs
Dimensions	12.2" x 12.2" x 16.38"

COOLING PERFORMANCE

The ability of the HY-500 to pull down temperatures in a 86°F room:

Aquarium Size	Temp. Attainable	Heating Load	Net Pull-Down	C.O.P.*
40 gallons	77°F from 86°F	1.89 Watts/gal	9°F cooler	2.0

* Coefficient of Performance (COP) - a numerical value that represents cooling performance from a baseline room temperature of 86°F and a typical heat source (aka. Heating Load)
